744314650
Manufacturer:
Wurth Electronics
Mfr.Part #:
744314650
Datasheet:
Description:

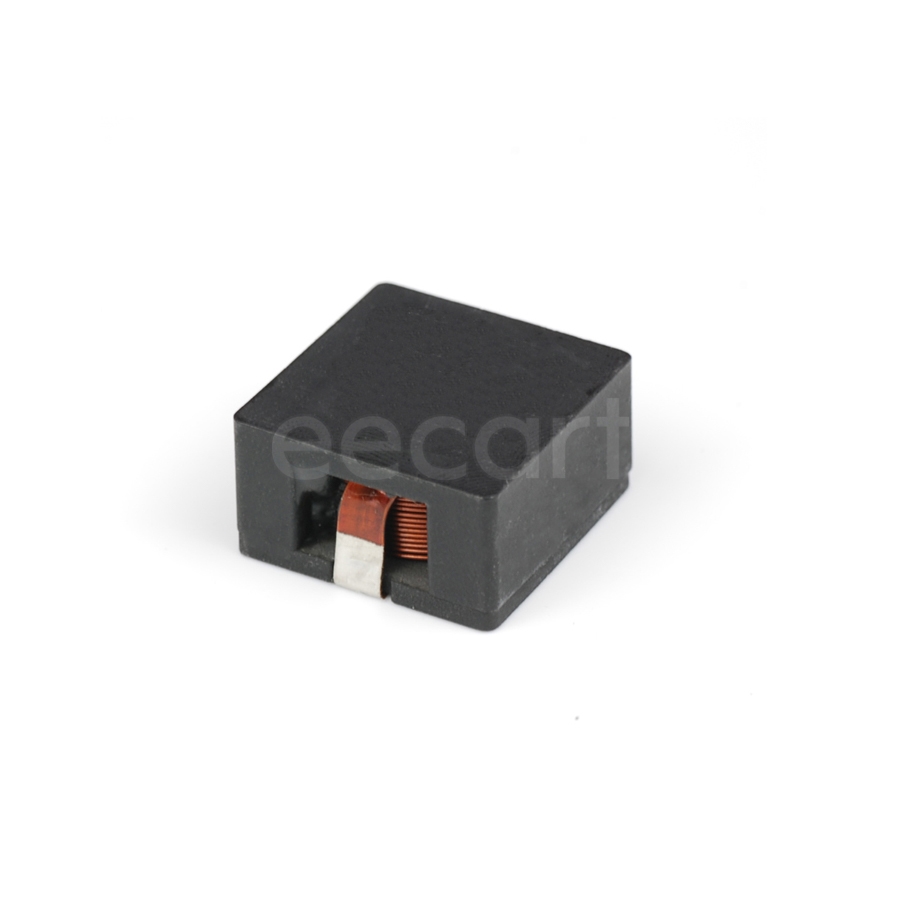

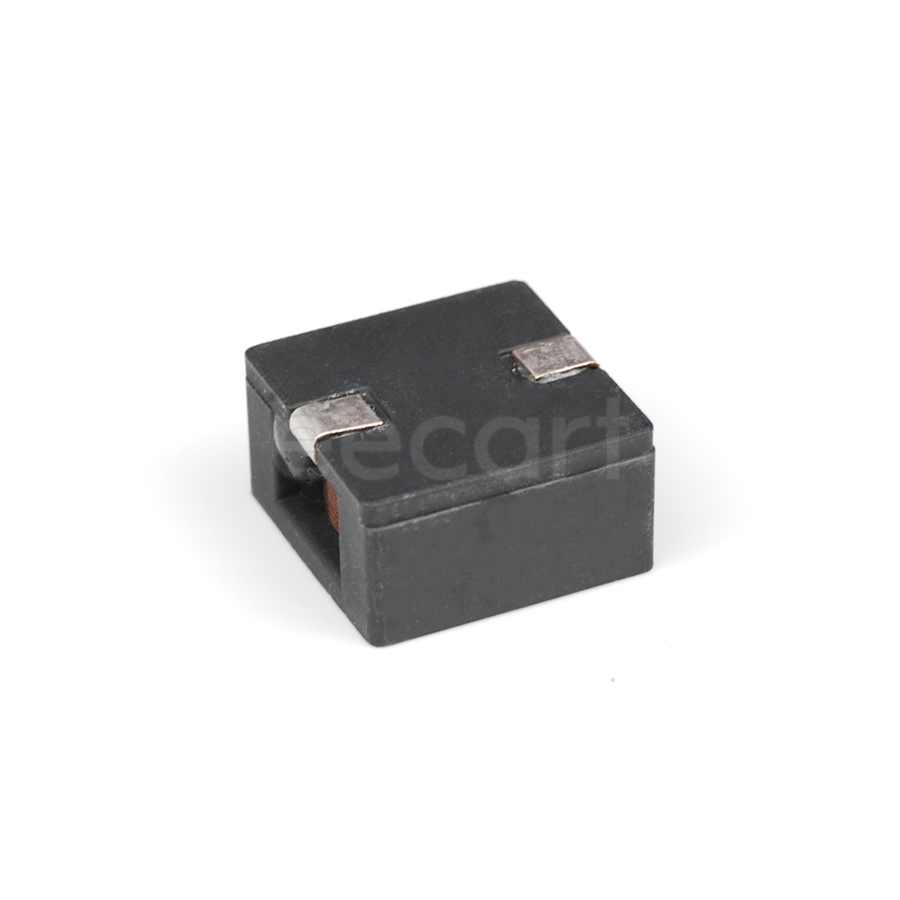

Fixed Inductors 6.90mmL×6.90mmW×5.00mmH SMD/SMT 6.5 µH 20 % 6 A 21.5 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 5 mm |
| Length | 7 mm |
| Width | 6.9 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Resistance | 22.5 mΩ |
| Composition(Kit Type) | Wirewound |
| Height | 4.8 mm |
| Packaging | Reel |
| Depth | 7.2 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Self Resonant Frequency | 50 MHz |
| Current Rating | 6 A |
| DC Resistance (DCR) | 21.5 mΩ |
| Test Frequency | 100 kHz |
| Military Standard | Not |
| Shielding | Shielded |
| Inductance | 6.5 µH |
| RMS Current (Irms) | 6 A |
| inductance tolerance | 20 % |
| Max DC Current | 6 A |
| Series Resistance | 21.5 Ω |
| Saturation Current | 6 A |
| Type | Wirewound |
| Core Material | Iron Powder |
Stock: 2822
Distributors
pcbx
pcbxUnit Price$2.37792
Ext.Price$2.37792
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.37792 | $2.37792 |
| 10 | $2.32760 | $23.27600 |
| 25 | $2.23829 | $55.95725 |
| 50 | $2.15239 | $107.61950 |
| 100 | $2.05854 | $205.85400 |
| 300 | $1.99176 | $597.52800 |
| 500 | $1.92714 | $963.57000 |
| 1000 | $1.53170 | $1531.70000 |
